V Cutting
Saw Machine

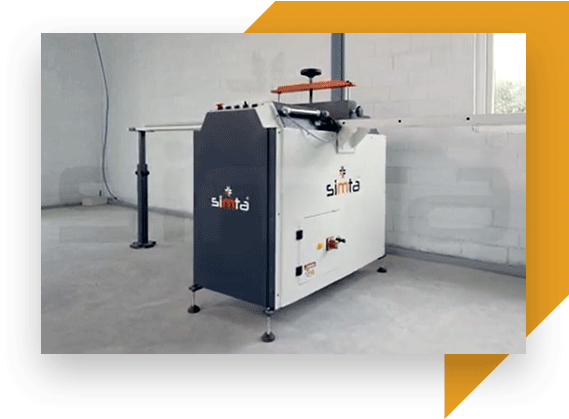

The V Cutting Machine is used for high precision welding processes to create V slots of varying depths with precise calculations using the V cutting process. We at SIMTA use extremely high precision technology called the one-way single linear progressive tool with a double saw mechanism which helps obtain accuracy and speedy deliverability.
2 Saw Blades Mechanism for Making V Cuts Slots in Frame and V Cut in Mullions.

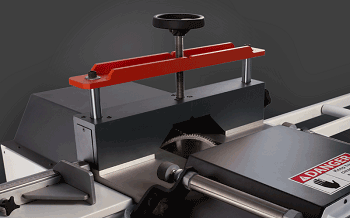

The Cutting depth can be adjustable easily with Screw Mechanism.
Feeding can be adjusted manually

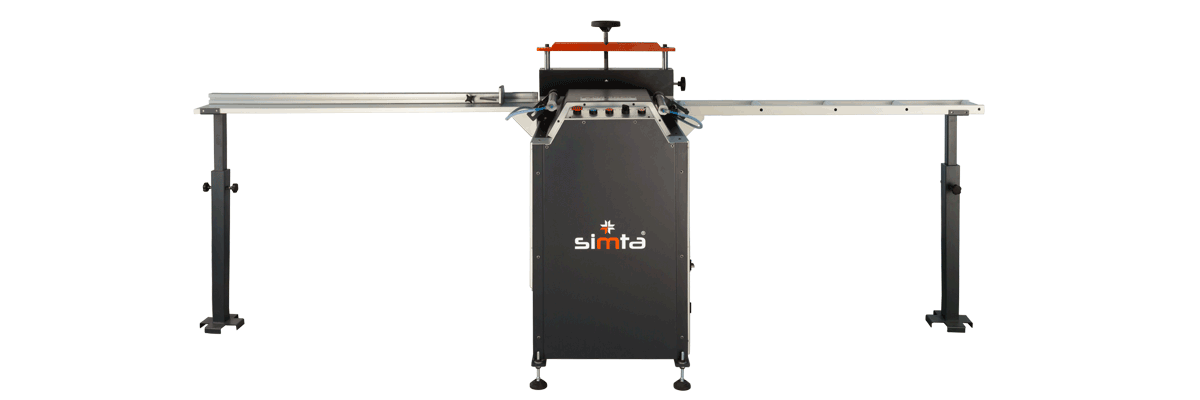

Manual Roller Conveyor System with limited Profile storage and Height adjustable.

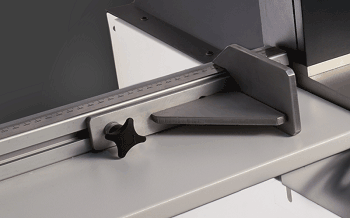

Measuring Scale with adjustable length stopper for Accuracy
2 Pneumatic Top Clamping and 2 Pneumatic Front Clamping for stable fixing of uPVC Profiles.
Rigid Frame for Stability with long life and Accuracy of Function.
The machine has a mechanism called the easy adjustment procedure, where the slot is identified the desired depth is created simply by rotating the machine.

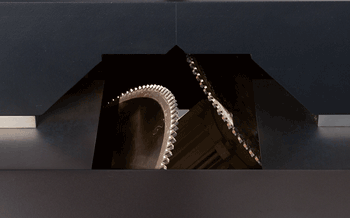

Double saw blade mechanism is used for removing the material in one stroke so as to avoid rotating the profiles to get the slot. It is a one-way progressive tool.
A linear measuring device helps speed up the process of measuring the distance of slots simultaneously for wherever it is needed on the frame.
| Saw Blade Diameter: | 2xɸ300mm |
| Saw Blade Rotation: | 2880 rpm |
| Max. Cutting Length: | 1500mm |
| Power Output of Motor: | 1.5 kW (0.75kW for Each Motor) |
| Pneumatic Cylinders & Its Accessories: | SMC, Japan. |
| Electrical Components: | Siemens & Schneider Components |
380-415v, 3 ph, 50-60 Hz.
Up to 6 - Bar
200 kg
H 1100 mm
L 3030 mm
W 1550 mm
V Cutting
