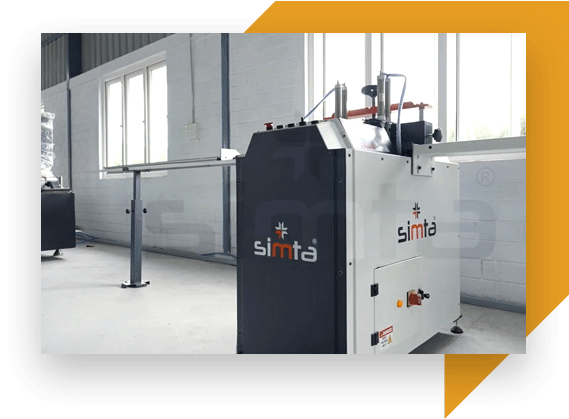

Glazing Bead
Cutting Saw Machine
The aesthetics of windows and doors largely depend on the precision of the glazing beads created. We at SIMTA use a double saw blade with different angles to ensure precise cuts. SIMTA’s USP uses a Unique Indexing Mechanism, a brilliant cost saver because it uses prefixed indexes of varying sizes to create the cutting blocks. We also use a linear device to ensure high accuracy in the process.
2 Saw Blades Mechanism for Cutting of Glazing Bead Profiles.
2 Similar Types of Glazing Beads can be cut at same time
The Cutting depth can be adjusted easily with Screwing Mechanism.
Multiple Profile Cutting Option with a Large Bed Space to Cut up to 120mm.
Feeding can be adjusted manually

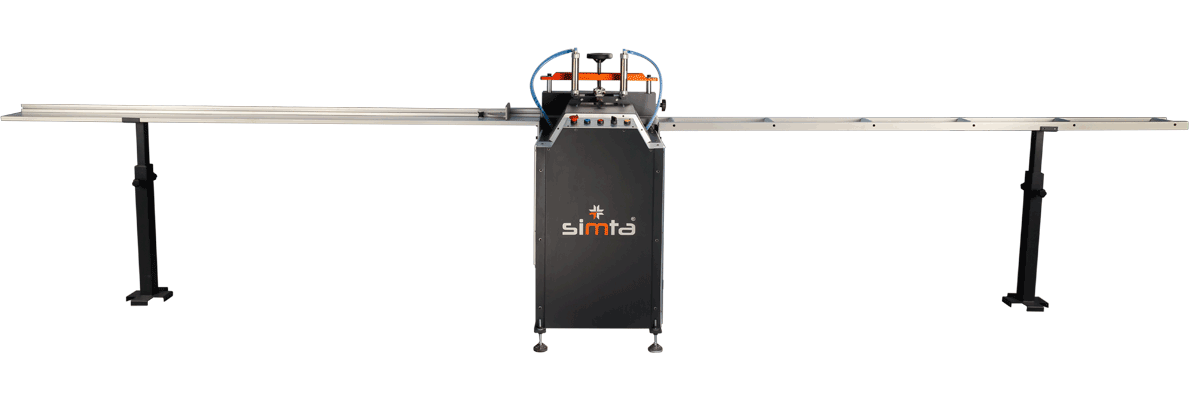

Manual Roller Conveyor with limited bead storage & Height adjustable.

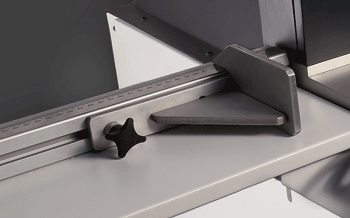

Measuring Scale with adjustable length stopper for Accuracy

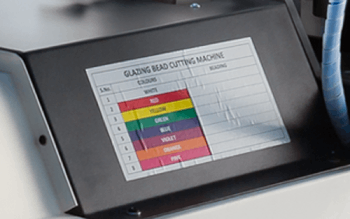

Universal Bead Block Technology. The Adjustment Method enables to Use the same for 8 Varieties of Glazing Beads.

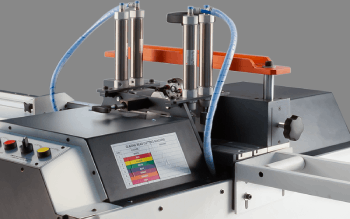

2 Pneumatic Top Clamping for stable fixing of Glazing Bead Profiles
Rigid Frame for Stability with long life and Accuracy of Function.
The machine uses a technology where the saw blade ensures a proper angular cutting to deliver precision.
The machine uses two blades that are not at 45 degrees and an adjustable head mechanism to deliver the angles that are precise with various adjusted heights.
The machine uses unique indexing, which avoids creating multiple blocks every time there is a new requirement for these profiles.
| Saw Blade Diameter: | 2xɸ220mm and 2xɸ135mm |
| Saw Blade Rotation: | 2880 rpm |
| Max. Cutting Length: | 2500mm |
| Min. Cutting Length: | 140 mm |
| Power Output of Motor: | 1.5 kW (0.75kW for Each Motor) |
| Pneumatic Cylinders & Its Accessories: | SMC, Japan. |
| Electrical Components: | Siemens & Schneider Components |
380-415v, 3 ph, 50-60 Hz.
Up to 6 - Bar
250 kg
H 1100 mm
L 5530 mm
W 1400 mm
