Double Head
Cutting Saw Machine
The first process in window and door frame fabrication is the double head cutting mechanism, where highly precise linear processes give accurate dimensions to the frame. Our biggest USP at SIMTA uses an Angular cutting mechanism using high precision computerized motors to give highly accurate dimensions. Our machines are capable of giving a single stretch of 4200 mm of clear cut dimension, which is a true rarity.
Suspendisse potenti. Aenean nibh orci, condimentum semper malesuada ut, eleifend nec enim. Class aptent taciti sociosqu ad litora torquent per conubia nostra, per inceptos himenaeos. Integer ac odio enim. Sed vitae facilisis mauris.
Nam euismod odio tincidunt, tincidunt mi varius, sagittis mi. Morbi tincidunt est nisi, a tincidunt erat imperdiet at. Proin facilisis ut metus vel dapibus. Pellentesque malesuada euismod maximus.
High Precise Profile Cutting for uPVC Profiles at 45° and 90°.
Auto Angle Rotation for Cutting up to 55°.
Rigid Built Up Heads for Length and Angle Accuracy.
Multiple Profile Cutting Option with a Large Bed Space to Cut up to 120mm.
Adjustable Saw Blade Feeding Mechanism.
Cutting Head Movement up to 4200mm (Clear Cut).
Profile Support is attached to the Movable Head for balancing the profiles.

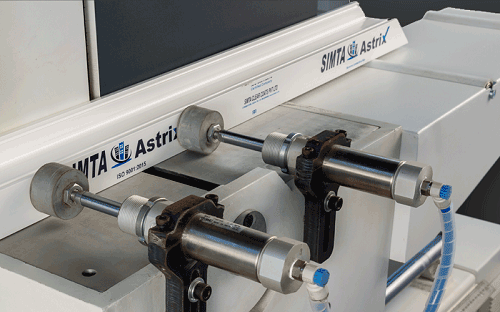

Front Clamping for rigid profile fixing.
Digital Read out Technology for Accurate and Precise Cutting.
Adjustable Support Stand for Balance of Profiles in Full Span Length.
The movement of the machine is as precise as computerized ones to ensure variety in the different angles it can offer.

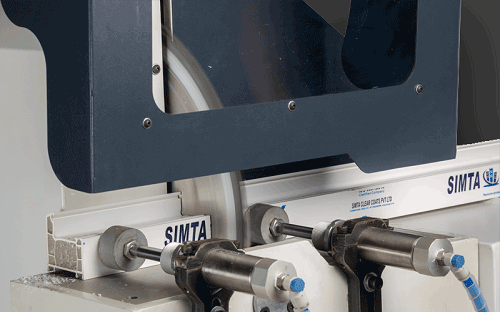

The cutting blade width of the machine ensures that it can cut the maximum width of the profile. We have wide blades that give you maximum width to a single section.
The precision of the machine ensures the deliverability of accurate dimensions, which forms the basis for the rest of the work being carried out smoothly.
| Saw Blade Diameter: | ɸ455mm |
| Saw Blade Speed: | 2880 rpm |
| Max. Cutting Length: | 4200mm |
| Min. Cutting Length: | 475mm @ 45° Profile Cutting 425mm @ 90° Profile Cutting |

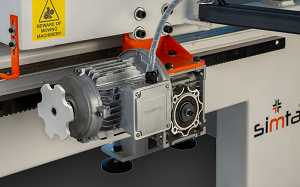

| Power Output of Motor: | 3.3 kW (1.5kW Each for Cutting & 0.3kW for Linear Movement) |
| Pneumatic Cylinders & Its Accessories: | SMC, Japan. |
| Electrical Components: | Siemens & Schneider Components |
380-415v, 3 ph, 50-60 Hz.
Up to 6 - Bar
1200 kg
H 1550 mm
L 5300 mm
W 1300 mm
Double Head
automatic
