Interlock
Punching Machine

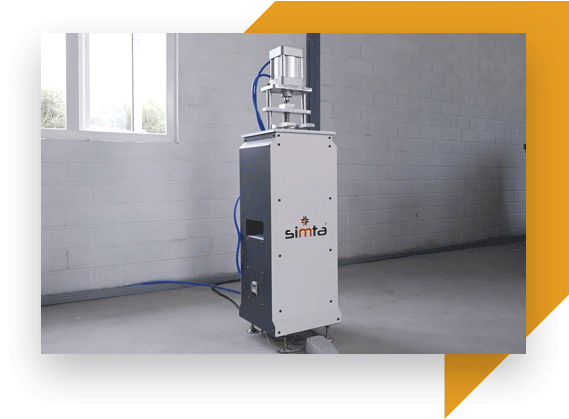

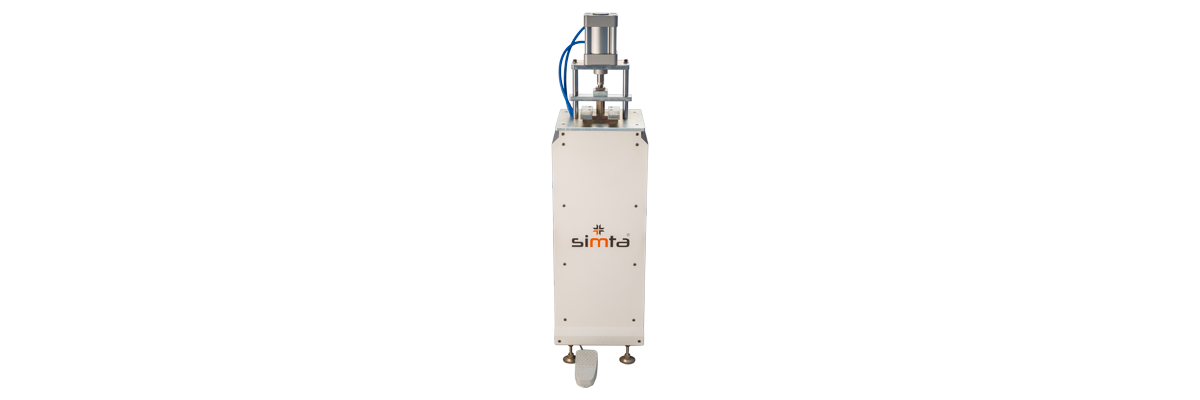

The Interlock punching mechanism is used for sliding doors and window profiles. The interlock system is used so that the profile moves very smoothly on the track with zero friction. We also ensure the safety aspect by creating a robust locking mechanism that prevents the opening of the lock from outside, a major point in theft control.
High Precise Profile Cutting for uPVC Profiles at 45° and 90°.
Auto Angle Rotation for Cutting up to 55°.
Rigid Built Up Heads for Length and Angle Accuracy.
Multiple Profile Cutting Option with a Large Bed Space to Cut up to 120mm.
Adjustable Saw Blade Feeding Mechanism.
Cutting Head Movement up to 4200mm (Clear Cut).
Profile Support is attached to the Movable Head for balancing the profiles.
Front Clamping for rigid profile fixing.
Digital Read out Technology for Accurate and Precise Cutting.
Adjustable Support Stand for Balance of Profiles in Full Span Length.

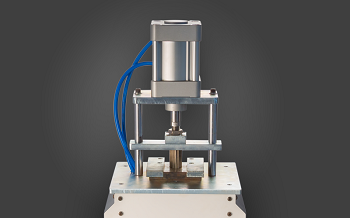

There is a form tool working with pneumatic controls and pistons to punch grooves that match the profiles to the track.
The punching mechanism also ensures the interlock being intact so that the sash does not get removed too easily.
| Saw Blade Diameter: | ɸ455mm |
| Saw Blade Speed: | 2880 rpm |
| Max. Cutting Length: | 4200mm |
| Min. Cutting Length: | 475mm @ 45° Profile Cutting 425mm @ 90° Profile Cutting |
| Power Output of Motor: | 3.3 kW (1.5kW Each for Cutting & 0.3kW for Linear Movement) |
| Pneumatic Cylinders & Its Accessories: | SMC, Japan. |
| Electrical Components: | Siemens & Schneider Components |
380-415v, 3 ph, 50-60 Hz.
Up to 6 - Bar
1200 kg
H 1550 mm
L 5300 mm
W 1300 mm
