End

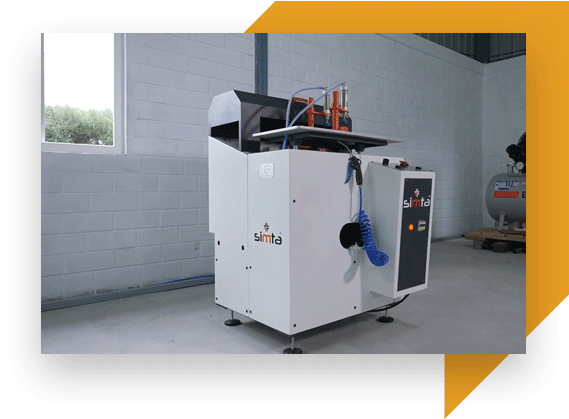

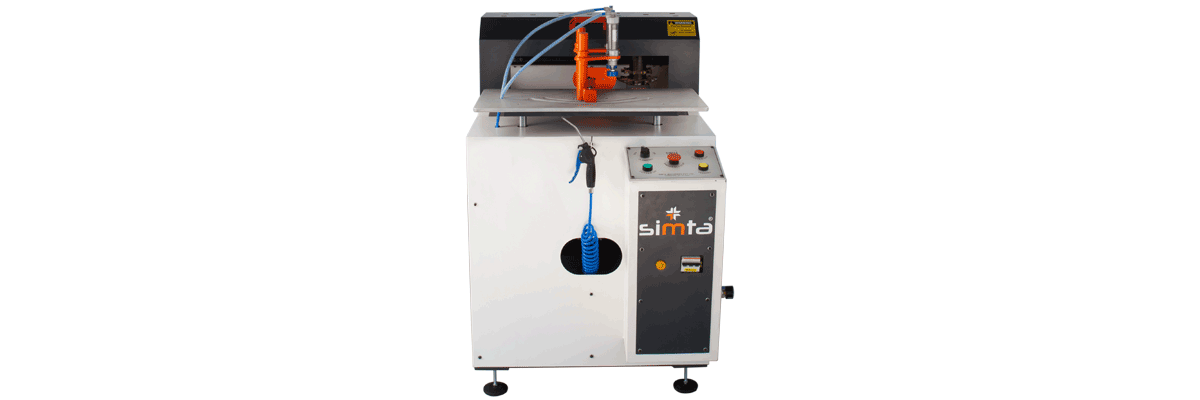

Milling Machine
Milling is nothing but bringing into shape to connect to mullions or frames. They are also called form cutters as they cut shapes and are traditionally found only as 90 degrees angle cutters. We at SIMTA provide angular heads that adjust the frame to be cut at multiple angles for different shapes.
Suspendisse potenti. Aenean nibh orci, condimentum semper malesuada ut, eleifend nec enim. Class aptent taciti sociosqu ad litora torquent per conubia nostra, per inceptos himenaeos. Integer ac odio enim. Sed vitae facilisis mauris.
Nam euismod odio tincidunt, tincidunt mi varius, sagittis mi. Morbi tincidunt est nisi, a tincidunt erat imperdiet at. Proin facilisis ut metus vel dapibus. Pellentesque malesuada euismod maximus.
For End Milling of uPVC Profiles.
Automatic Milling Operation for Various Profiles
Feeding can be adjusted manually
Easy Cutter Changing for Different Profiles.
Various Angle of Mullion Milling.

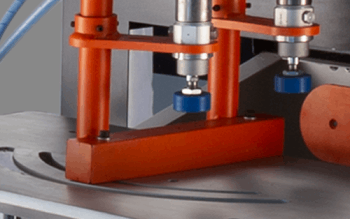

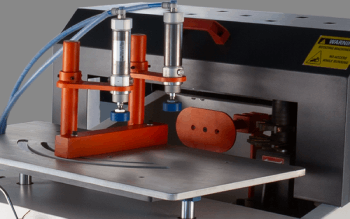

2 Pneumatic Top Clamping for stable fixing of uPVC Profiles
Auto Collection Tray for Collecting Milling Wastes.
These cutters are designed in such a way that once milled, the frame and mullion will join in a precise aesthetic manner.
The milling machine gives the desired shape beyond the regular 90 degrees and gives the flexible angles as desired.
| Spindle Rotation: | 2880 rpm |
| Max. Profile Height: | 100mm |
| Max. Profile Width: | 120mm |
| Input Power | 1.5 kW |
| Pneumatic Cylinders & Its Accessories: | SMC, Japan. |
| Electrical Components: | Siemens & Schneider Components |
380-415v, 3 ph, 50-60 Hz.
Up to 6 - Bar
175 kg
H 750 mm
L 750 mm
W 700 mm
